COSA® Selection Guide
Shortform Selection Guide Of Preferred COSA Products

SIU36
SIU36
  • Board Type: 3U OpenVPX
  • Dimensions w/ Connectors (w x h x d): 7.13" x 4.78" x 9.31"
  • Volume w/ Connectors (in3): 320
  • Weight / lbs (fully populated): < 6.85 lbs. Chassis plus ~ 1.25 lbs. for PSU and each addl. board
  • Est. Typ. Power Dissipation (W): 50 to 150 W
  • # of Board Slots: 6
  • Function Module Slots: 18
  • Max I/O Pins: 906
  • Ethernet: 2 x Gb

View

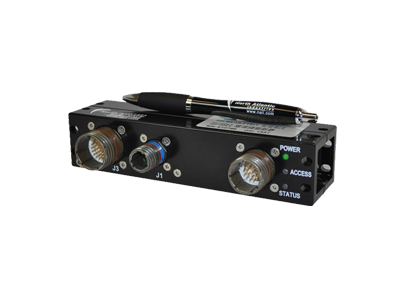

NIU1A
NIU1A
  • Board Type: Module
  • Dimensions w/ Connectors (w x h x d): 6.8" x 1.5" x 2.5"
  • Volume w/ Connectors (in3): 28.90
  • Weight / lbs (fully populated): < 1.2
  • Est. Typ. Power Dissipation (W): 5 to 15 W
  • # of Board Slots: N/A
  • Function Module Slots: 1
  • Max I/O Pins: 59
  • Ethernet: 2 x Gb

View

NIU2A
NIU2A
  • Board Type: Module
  • Dimensions w/ Connectors (w x h x d): 7.0" x 3.0" x 2.5"
  • Volume w/ Connectors (in3): 52.5
  • Weight / lbs (fully populated): < 2.75
  • Est. Typ. Power Dissipation (W): 5 to 25 W
  • # of Board Slots: N/A
  • Function Module Slots: 2
  • Max I/O Pins: 132
  • Ethernet: 2 x Gb

View

SIU31
SIU31
  • Board Type: 3U cPCI
  • Dimensions w/ Connectors (w x h x d): 4.71" x 2.35" x 8.71"
  • Volume w/ Connectors (in3): 96.41
  • Weight / lbs (fully populated): < 5.0
  • Est. Typ. Power Dissipation (W): 7 to 35 W
  • # of Board Slots: 1
  • Function Module Slots: 3
  • Max I/O Pins: 132
  • Ethernet: 2 x Gb

View

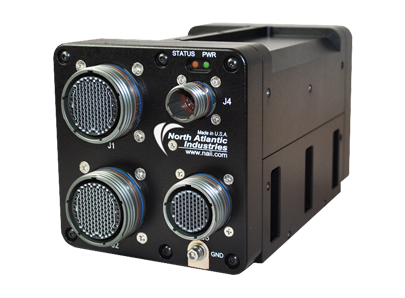

SIU33
SIU33
  • Board Type: 3U cPCI
  • Dimensions w/ Connectors (w x h x d): 4.71" x 4.78" x 8.71"
  • Volume w/ Connectors (in3): 196.10
  • Weight / lbs (fully populated): < 10.0
  • Est. Typ. Power Dissipation (W): 14 to 75 W
  • # of Board Slots: 3
  • Function Module Slots: 9
  • Max I/O Pins: 322
  • Ethernet: 2 x Gb

View

SIU35
SIU35
  • Board Type: 3U cPCI
  • Dimensions w/ Connectors (w x h x d): 7.13" x 4.78" x 8.71"
  • Volume w/ Connectors (in3): 296.85
  • Weight / lbs (fully populated): < 15.0
  • Est. Typ. Power Dissipation (W): 25 to 100 W
  • # of Board Slots: 5
  • Function Module Slots: 15
  • Max I/O Pins: 512
  • Ethernet: 2 x Gb

View

SIU6
SIU6
  • Board Type: 6U VME
  • Dimensions w/ Connectors (w x h x d): 11.75" x 3.35" x 8.65"
  • Volume w/ Connectors (in3): 340.49
  • Weight / lbs (fully populated): < 14.0
  • Est. Typ. Power Dissipation (W): 12 to 60 W
  • # of Board Slots: 2
  • Function Module Slots: 12
  • Max I/O Pins: 316
  • Ethernet: 2 x Gb

View
