Multifunction I/O Boards

NAI offers a variety of rugged embedded boards - both Multifunction I/O Boards & Single Board Computers in OpenVPX, cPCI, VME and PCI/PCIe form factors. When combined with our smart function modules they have the ability to meet a wide range of complex and time-critical sense and response requirements for I/O-intensive, mission-critical applications. Specifically designed for the most demanding defense, commercial aerospace and industrial applications, these boards are built with a modular I/O approach that accelerates deployment of COTS-based, high-density, SWaP-optimized solutions.

cPCI

OpenVPX

PCI

PCIe

VME

Filter By Form Factor

3U, 0.8" Pitch / 4HP

6U, 0.8" Pitch / 4HP

Filter By Technical Standards

SOSA™ Aligned

Filter By Board Features

PCIe Function Capable

View Other COSA Product Families

Looking for high density multifunction or combination-function I/O boards? View all High Density I/O Boards.

Browse all Configurable Open Systems Architecture™ (COSA®) product category pages:

COSA® Selection Guide

Shortform Selection Guide Of Preferred COSA Products

View Download

68G6

68G6

Board Type: OpenVPX
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: Dual or Quad Core ARM® Cortex®-A53
Function Module Slots: 3
Ethernet: 2 x Base-KR
Master / Slave: Endpoint
Technical Standards: SOSA™ Aligned
Other: Slot Profile: SLT3-PAY-2U2U-14.2.17 / Module Profile: MODA3p-16.2.16-1-F2C-(P3U)(2E7)

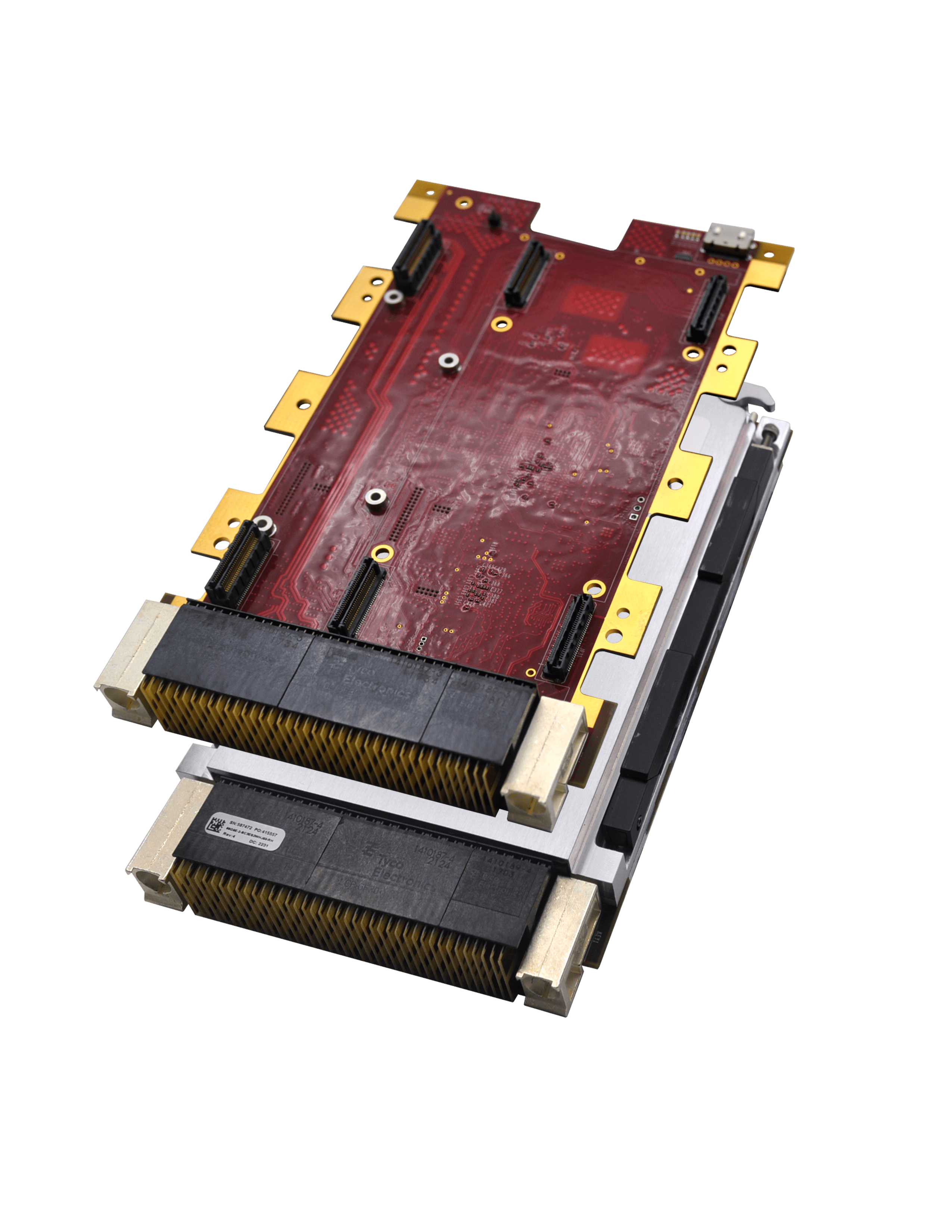

68G5E

68G5E

Board Type: OpenVPX
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: Dual Core ARM® Cortex®-A9 at 800 MHz
Function Module Slots: 1 Slot
Ethernet: 1 x Gb
Master / Slave: Endpoint
Other: Slot profile: SLT3-SWH-16T-14.4.6, No PCIe; when configured as a GbE switch only (no-MFIO function) Slot profile: SLT3-PER-1U-14.3.3, x1 PCIe; when configured as a GbE switch with 1-MFIO function

68G5P

68G5P

Board Type: OpenVPX
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: Dual Core ARM® Cortex® at 800 MHz
Function Module Slots: 3
Ethernet: 2 x GbE or Base-KX
Master / Slave: Endpoint
PCIe Function Capable: Yes
Other: Slot Profile: SLT3-PAY-2U2U-14.2.17 / Module Profile: MOD3-PAY-2u2-16.2.16-2

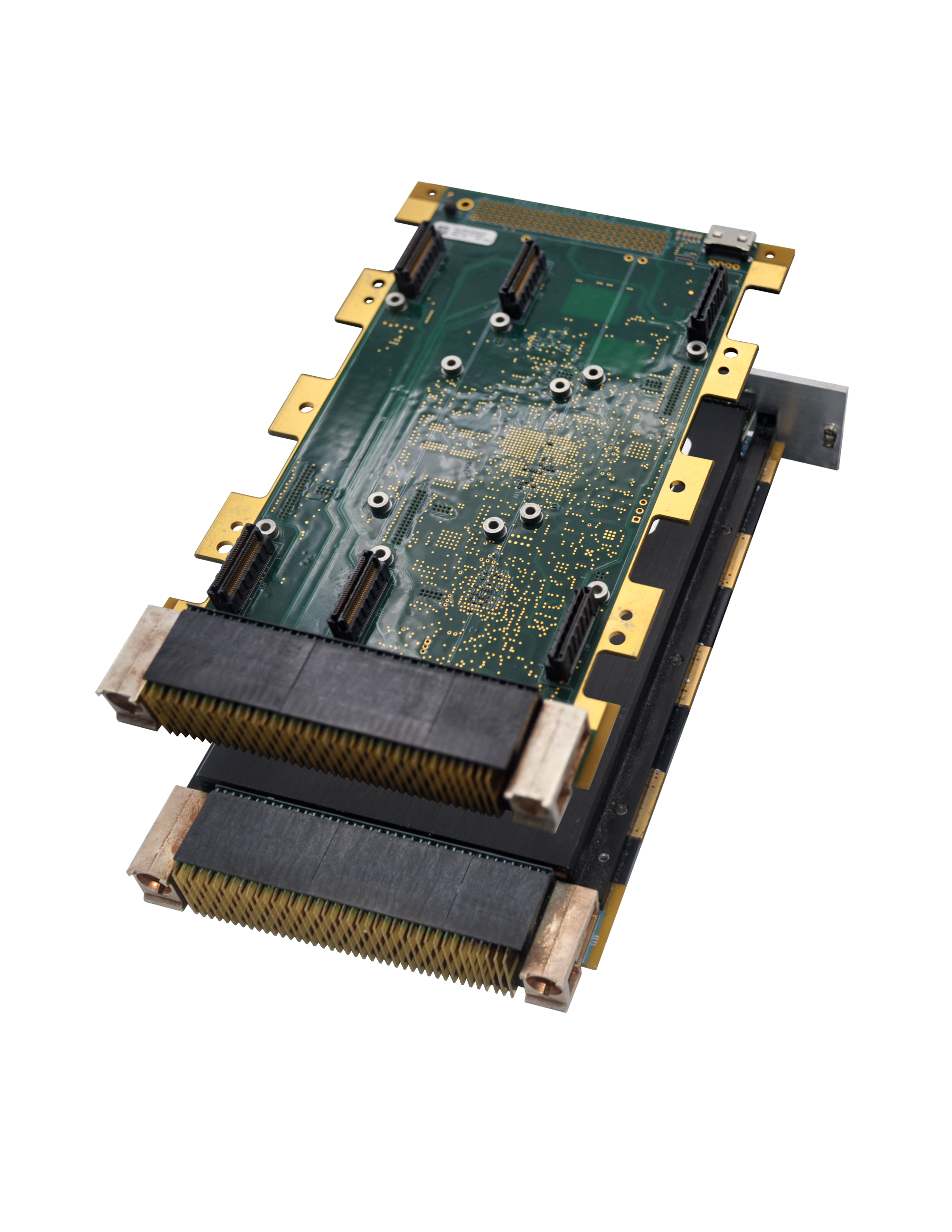

68G5

68G5

Board Type: OpenVPX
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: Dual Core ARM® Cortex®-A9 at 800 MHz
Function Module Slots: 3 slots
Ethernet: 2 x Gb
Master / Slave: Endpoint
Other: Slot Profile: SLT3-PER-1U-14.3.3 / Module Profile: MOD3-PER-1U-16.3.3-2

67G6

67G6

Board Type: OpenVPX
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: ARM® Cortex®-A53
Function Module Slots: 6 slots +24 Ch. Onboard Discrete I/O
Ethernet: 2 x Gb
Master / Slave: Endpoint
On Board Reference: Y
Other: Slot Profile: SLT6-PER-4U-10.3.3 / Module Profile: MOD6-PER-4U-12.3.3-2

68C3

68C3

Board Type: OpenVPX
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® IV
Function Module Slots: 2 + 1/2 slots
Ethernet: 2 x Gb
Master / Slave: Both

75G5

75G5

Board Type: cPCI
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: ARM / Xilinx® Zynq
Function Module Slots: 3 slots
Ethernet: 2 x Gb
Master / Slave: Both

75D4-H2

75D4-H2

Board Type: cPCI
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® III
Function Module Slots: 1 double width module slot occupied by H2 switch
Ethernet: 12 x Gb
Master / Slave: Both

75D4

75D4

Board Type: cPCI
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® III
Function Module Slots: 1 double width slot
Ethernet: 2 x Gb
Master / Slave: Both

75C5

75C5

Board Type: cPCI
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® III
Function Module Slots: 2 + 1/2 slots
Ethernet: 1 x Gb
Master / Slave: Both

75C3

75C3

Board Type: cPCI
Form Factor: 3U, 0.8" Pitch / 4HP
Board Architecture: S/B Cyclone® II
Function Module Slots: 2 + 1/2 slots
Ethernet: 1 x Gb
Master / Slave: Slave

78CS2

78CS2

Board Type: cPCI
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® II
Function Module Slots: 5 slots
Ethernet: 1 x Gb
Master / Slave: Slave
On Board Reference: Y

78C2

78C2

Board Type: cPCI
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® II
Function Module Slots: 6 slots
Ethernet: 1 x Gb
Master / Slave: Slave
On Board Reference: Y
Other: High Power D/S capable

79G5P

79G5P

Board Type: PCIe
Board Architecture: External PCIe I/F only
Function Module Slots: 1 slot
Size: 1/2

79G5

79G5

Board Type: PCIe
Board Architecture: Xilinx 7015 ARM® Cortex®-A9
Function Module Slots: 3 slots
Size: 1/2

79C3

79C3

Board Type: PCIe
Board Architecture: BF533 / Cyclone III
Function Module Slots: 3 slots
Size: 1/2

76CS3

76CS3

Board Type: PCI
Function Module Slots: 5 slots
Size: Full
On Board Reference: Y
Other: High Power D/S capable

76C2

76C2

Board Type: PCI
Function Module Slots: 3 slots
Size: 1/2

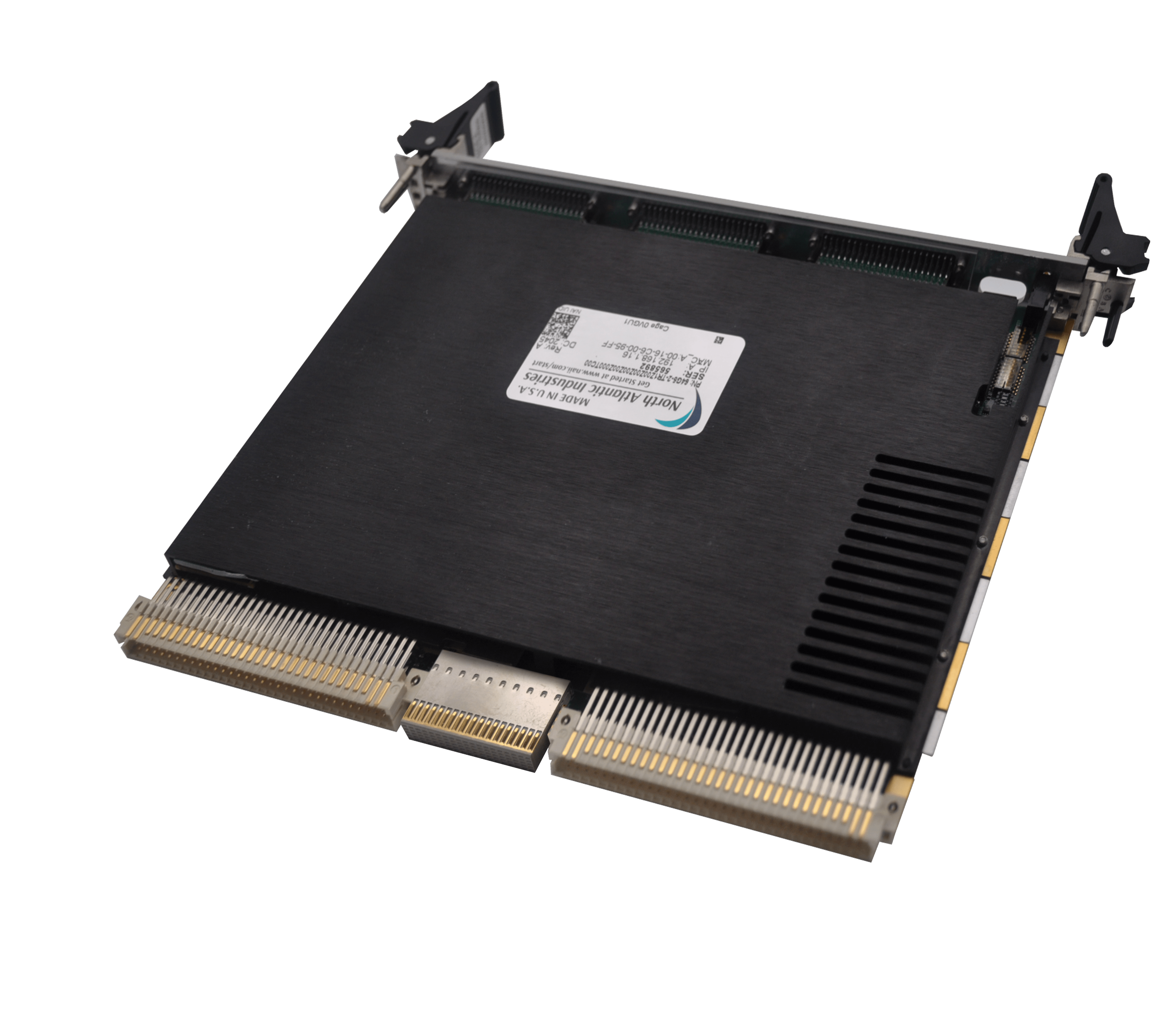

64G5

64G5

Board Type: VME
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: ARM / Xilinx® Zynq
Function Module Slots: 6 slots
Ethernet: 2 x Gb
Master / Slave: Both

64CS4

64CS4

Board Type: VME
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® II
Function Module Slots: 5 slots
Ethernet: 1 x Gb
Master / Slave: Slave
On Board Reference: Y
Other: High Power D/S capability

64C3

64C3

Board Type: VME
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® III
Function Module Slots: 6 slots
Ethernet: 2 x Gb
Master / Slave: Both
On Board Reference: Y

64C2

64C2

Board Type: VME
Form Factor: 6U, 0.8" Pitch / 4HP
Board Architecture: BF533 / Cyclone® II
Function Module Slots: 6 slots
Ethernet: 1 x Gb
Master / Slave: Slave
On Board Reference: Y
